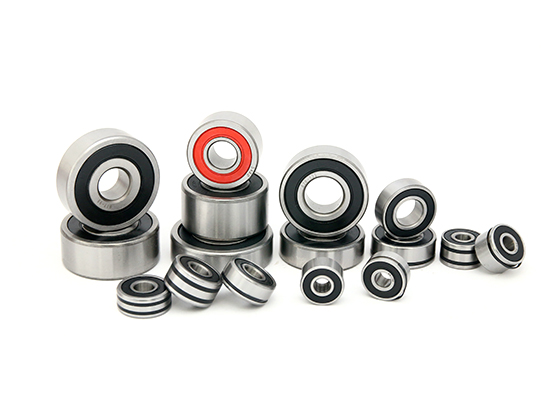

汽车发电机轴承B系列

外形尺寸				额定负荷		极限转速			轴承型号				结构形式	适用机型
Boundary				Load rating(kN)		Limiting speeds(rmp)			Bearing numbers					sued.ON
dimensions(mm)						Grease		Oil	Beep Groove Ball Bearings
d	D	B	r smin	Cr	Cor	Noncontact	contact		Ref.ON	YD	EUR	KML
8	22	7	0.3	3350	1370	32000	28000	37000		608-2RS		608-2RDA	2RS
	22	11	0.3	3350	1370	32000	28000	37000	B8-74D	NPB8-74D-2RS	630/8-2RS	B874-2RDA	NP	Alternators
	23	14	0.3	3910	1530	34000	30000	40000	B8-85D	B8-85D-2RS
	23	14	0.3	3910	1530	34000	30000	40000	B8-85D	NPB8-85D-2RS		B885-2RDA	NP
	23	14	0.3	3910	1530	34000	30000	40000	B8-23D	ECB8-23D-2RS	SC08A37LHI
	23	11	0.3	3910	1530	34000	30000	40000	B8-79D	B8-79D-2RS		B879-2RDA	NP
	23	11	0.3	3910	1530	34000	30000	40000	B8-79D	ECB8-79D--2RS
9	26	8	0.3	2700	1270	33000	23000	38000		629-2RS		629-2RDA	2RS
10	23	11	0.3	2700	1270	33000	23000	38000	B10-46D	B10-46D-2RS		B1046-2RDA	NP	Alternators
	26	8	0.3	4570	1970	30000	22000	36000	6000TT	EC6000-2RS	6000DDUCR	6000-2RDA	2RS
	26	10	0.3	4570	1970	30000	22000	36000	62000-2RS	62000-2RS		62000-2RDA	2RS
	26	13.9	0.3	4570	1970	30000	22000	36000	W6000-2RS	W6000-2RS
	27	11	0.3	4570	1970	30000	22000	36000	B10-50D	B10-50D-2RS		B1050-2RDA	NP
	27	11	0.3	4570	1970	30000	22000	36000	B10-50D	B10-51D-2RS
	27	11	0.3	4570	1970	30000	22000	36000	B10-50D	ECB-50D-2RS
	27	11	0.3	4570	1970	30000	22000	36000	B10-50D	NPB10-50D-2RS
	27	14	0.3	4570	1970	30000	22000	36000	B17-27D	B17-27D	B9000DRR	B900-2RDA	EC
	30	9	0.3	4570	1970	30000	22000	36000	6200-2RS			6200-2RDA	2RS
	30	14.3	0.3	4570	1970	30000	22000	36000	W6200RR	W6200RR
12	28	8	0.3	5100	2390	26000	18000	30000		6001-2RS		6001-2RDA	2RS
	28	12	0.3	5100	2390	26000	18000	30000	W6001-2RS	W6001-2RS
	32	10	0.6	6160	2770	22000	17000	28000			NP6201-2RS	B2012-2RDA	NP
	32	10	0.6	6160	2770	22000	17000	28000	6201-2RS	6201-2RS	6201RR	6201-2RDA	2RS	Alternators
	32	13	0.6	6160	2770	22000	17000	28000	B12-32D	B12-32D
	32	13	0.6	6160	2770	22000	17000	28000	B12-32DW	B12-32DW
	32	14	0.6	6160	2770	22000	17000	28000	62201-2RS	62201-2RS		62201-2RDA	2RS
	32	16	0.6	6160	2770	22000	17000	28000	W6201-2RS	W6201-2RS
	35	18	0.6	7750	3570	20000	14000	24000	214	214-2RS	949100-2140/B214
	35	18	0.6	7750	3570	20000	14000	24000	6201RRU	6201RRU		B2011-2RDA	2RS
	37	12	1	9700	4200	20000	15000	24000	6301-2RS	6301-2RS		6301-2RDA	2RS
	40	12	1	9700	4200	20000	15000	24000	B12-40D	B12-40D-2RS
	40	10	0.6	7690	3830	20000	14000	24000	B12-53D	B12-53D-2RS
12.7	28.275	7.938	0.4	4040	1750	19000	13000	23000				R8-2RDA	2RS
15	32	9	0.3	5600	2840	23000	14000	28000		6002-2RS		6002-2RDA	2RS
	32	11	0.3	5600	2840	23000	14000	28000	366  317	366-2RS	B15-70D			Alternators
	32	11	0.3	5600	2840	23000	14000	28000	62002-2RS	949100-3660/B366	B15-70D
	35	9	0.6	7750	3570	20000	14000	24000	7109Z	7109Z
	35	11	0.6	7750	3570	20000	14000	24000	6202-2RS	6202-2RS		6202-2RDA	2RS
	35	11	0.6	7750	3570	20000	14000	24000	6202TT	EC6202-2RS
	35	12.7	0.6	7750	3570	20000	14000	24000	87502RR	87502RR
	35	13	0.6	7750	3750	20000	14000	24000	6202SRR	949100-2790*B279
	35	13	0.6	7750	3750	20000	14000	24000	279	279-2RS	6202SRR	B2021-2RDA	2RS
	35	13	0.6	7750	3750	20000	14000	24000	B15-69	B15-69-2RS
	35	13	0.6	7750	3750	20000	14000	24000	B15-69	NPB15-69-2RS
	38	12	0.6	7750	3750	20000	14000	24000	SC0299ZLU	SC0299ZLU
	38	19	0.6	7750	3750	2000	14000	24000	348	949100-3480/B348		B2022-2RDA	2RS
	38	19	0.6	7750	3750	2000	14000	24000	348	348-2RS
	40	14	0.6	9550	4800	17000	12000	20000	B15-85D	B15-85D-2RS



外形尺寸				额定负荷		极限转速			轴承型号				结构形式	适用机型
Boundary				Load rating(kN)		Limiting speeds(rmp)			Bearing numbers					sued.ON
dimensions(mm)						Grease		Oil	Beep Groove Ball Bearings
d	D	B	r smin	Cr	Cor	Noncontact	contact		Ref.ON	YD	EUR	KML
15	42	13	1	11400	5450	17000	13000	20000		6302-2RS		6302-2RDA	2RS
	42	13	1	11400	5450	17000	13000	20000	EC6302-2RS	EC6302-2RS
	43	13	1	11400	5450	17000	13000	20000	B319	949100-3190/B319		B3021-2RDA	2RS	Alternators
	43	13	1	11400	5450	17000	13000	20000	319	319-2RS
	45	14	1	13580	6590	15000	11000	18000	B15-45D	B15-45D-2RS
	46	14	1	13580	6590	15000	11000	18000	336	336-2RS
	46	14	1	13580	6590	15000	11000	18000	B336	949100-3360/B336		B3022-2RDA	2RS
	46	14	1	13580	6590	15000	11000	18000	336	NP336-2RS
	47	14	1	13580	6590	15000	11000	18000	B15-86D	B15-86D-2RS		B3031-2RDA	2RS
	47	18	1	13580	6590	15000	11000	18000	B15-83D	B15-83D-2RS		B1583-2RDA	2RS
	52	16	1	15930	7875	14000	10000	17000	B382	949100-3820/B382		B3041-2RDA	2RS
	52	16	1	15930	7875	14000	10000	17000	382-2RS	382-2RS
17	30	7	0.3	4650	2580	22000				6903-2RS		6903-2RDA	2RS
	35	10	0.3	6800	3350	20000	14000	24000		6003-2RS		6003-2RDA	2RS
	40	12	0.6	9550	4800	17000	12000	20000	6302-2RS	6203-2RS		6203-2RDA	2RS	Alternators
	40	12	0.6	9550	4800	17000	12000	20000	6203TT	EC6203-2RS
	40	14.3	0.6	9550	4800	17000	12000	20000	87503RR	WC87503ZZ
	40	17.5	0.6	9550	4800	17000	12000	20000	W6203RR	W6203RR
	47	14	1	13580	6590	15000	11000	18000	6303-2RS	6303-2RS		6303-2RDA	2RS
	47	18	1	13580	6590	15000	11000	18000	B17-107D	B17-52D-2RS		B1594-2RDA	2RS
	47	19	1	13580	6590	15000	11000	18000	62303RR	62303RR
	47	24	1	13580	6590	15000	11000	18000	303WPP	6303/24-2RS		B3032-2RDA	2RS
	47	24	1	13580	6590	15000	11000	18000	B17-47D	REF382
	52	15	1.1	15930	7875	14000	10000	17000	B17-52D	B17-52-2RS
	52	16	1.1	15930	7875	14000	10000	17000	333	333-2RS	B3042DRR	B3042-2RDA	2RS
	52	17	1.1	15930	7875	14000	10000	17000	B17-99D	B17-99D-2RS		B3043-2RDA	2RS
	52	18	1.1	15930	7875	14000	10000	17000	B17-116D	B17-116D-2RS		B3044-2RDA	2RS
	52	21	1.1	15930	7875	14000	10000	17000	175217-2RS	62304/17
18.8	37	9	0.3	6370	3680	19000	15000	23000	6904DW	6904DW
20	37	8.5	0.3	6370	3680	19000	15000	23000	5904-WB	5904-WB
	37	9	0.3	6370	3680	19000	15000	23000		6904-2RS		6904-2RDA	2RS
	42	12	0.3	9400	5050	18000	11000	21000		6004-2RS		6O04-2RDA	2RS
	47	14	1	12800	6650	16000				6204-2RS		6204-2RDA	2RS
	52	15	1.1	15900	7900	14000				6304-2RS		6304-2RDA	2RS
22	56	21	1.1	18400	9250	13000	10000	15000	62322	62322
25	42	9	0.3	7050	4550	16000				6905-2RS		6905-2RDA	2RS
	47	12	0.6	10400	5850	15000				6005-2RS		6005-2RDA	2RS
	52	15	1	14000	7850	13000				6205-2RS		6205-2RDA	2RS
	52	20.6	1	14000	7850	13000	10000	15000	W6205RR	W6205RR
	62	17	1.1	21200	10900	12000	10000	14000		6305-2RS		6305-2RDA	2RS
	62	25.4	1.1	21200	10900	12000	10000	14000	W6305RR	W6305-2RS		63305-2RDA	2RS
	62	21	1.1	21200	10900	12000	10000	14000	87605RR	87605RR
	62	19	1.1	21200	10900	12000	10000	14000	3051	3051
30	47	9	0.3	7240	5010	14000	10000	17000	6906DW	6906DW		6906-2RDA	2RS
	55	13	1	13200	8300	13000				6006-2RS		6006-2RDA	2RS
	62	16	1	19500	11300	11000				6206-2RS		6206-2RDA	2RS
	72	19	1.1	26700	15000	10000				6306-2RS		6306-2RDA	2RS
	72	30.2/30.5	1.1	26700	15000	10000	8000	12000	W6306RR	W6306RR		63306-2RDA	2RS
45	85	19	1.1	32500	20400	7800				6209-2RS		6209-2RDA	2RS
